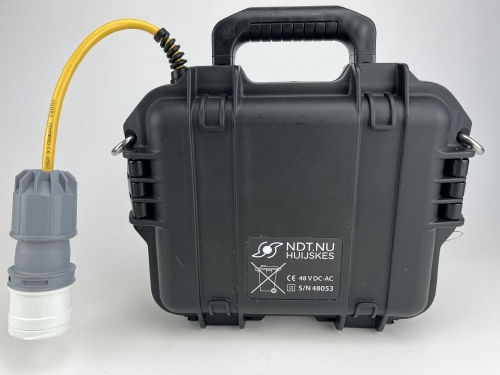

PP-230 Power Pack

Power Pack for Yoke inspections. Output voltage: 230V, The NDT portable battery pack.

PP-230 Power Pack
See details *Prices are exclusive of VAT
Article code:  31731
De Power Pack is developed as an alternative power source for electromagnetic yoke is intended for magnetic inspection with electromagnetic yokes working on 110V (PP- working on 110V (PP-110), 230V (PP-230) or 48V (PP-48). Output is AC, comparable to conventional AC mains operation.
For the PP-110 the output is a true sinewave, for the PP-230 and PP-48 the output is a modified sinewave.
All Power packs are only tested and recommended to be used with the MY-2 yokes.

Optional: shoulder strap

Technical specifications PP-42, PP-110 and PP-230 Power Packs


Working temperature                5°C-35°C (< 50% R.H.)
Storage temperature                -10°C-45°C        (0-80% R.H.)

Output                                PP-42                42-48VAC modified sine wave, max 7A
       PP-110        110VAC pure sine wave, max  5A
       PP-230        230V modified sine wave, max. 3.7A

Intended use                        Electromagnet in maximum 25% duty cycle with 25 sec
continuous operation.

Power                                12.6V or 48V  LiFePo battery
ca. 1 to 2 day use
Long life : Upto 2000x recharge!!!
Use depends on type of Electromagnet and intensity.
Low battery indicator                Power Pack beeps when battery is almost empty.

Dimensions                        31 x 12 x 25 cm (L x W x H)
Weight (approx.)                PP-42        4,0 Kg
PP-110        4,2 Kg
PP-230        4,2 Kg
.
